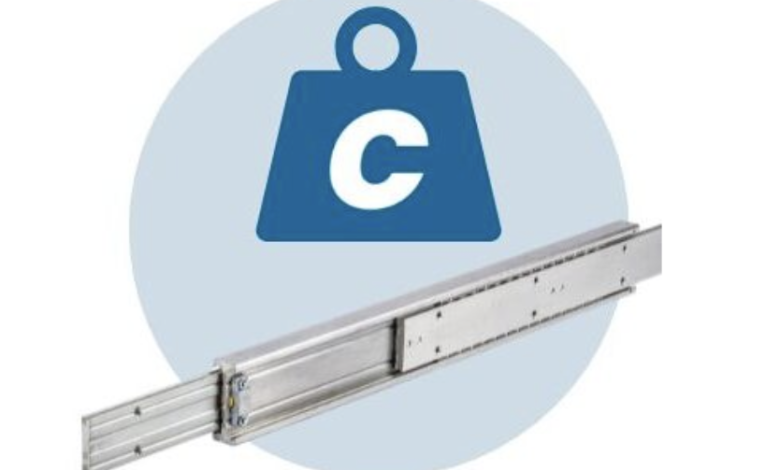

When selecting drawer slides, consider load capacity to ensure a secure, dependable, and durable storage solution. The right slides should support the drawer, its contents, and the forces generated during opening and closing.
Slides with inadequate capacity can lead to sagging, sticking, early wear, and failure. This is how to select the correct load capacity for your application.
5 Tips for Picking The Right Load Capacity for Drawer SlidesÂ
To ensure smooth operation and long-term reliability, leave an appropriate safety margin, account for usage frequency, and follow installation guidelines. Below are effective ways to select the right drawer slides’ load capacity.
Calculate the total weight
Start by estimating the drawer’s maximum weight. Add the weight of the drawer, hardware, and anything you put in the drawer. Never use the drawer’s contents as the basis of the calculation. Use the maximum intended load to avoid continuously overworking the slides.
Always compare the manufacturer’s load rating
Drawer slides are usually rated for a maximum load. Capacity may vary based on factors such as slide length, mounting orientation, installation method, and expected cycle count.
Never assume that two slides with the same size are the same. Always read the manufacturer’s technical specifications, especially for linear guide systems.
Leave a margin of error
Do not choose a slide whose maximum rating is equal to the anticipated load. A safety margin provides extra room for impact and occasional heavier loads.
A higher-rated slide can also provide a more durable performance and lower stress on the mechanism in demanding applications.
Consider how the drawer will be used
Usage matters as much as weight. A drawer opened once a week is open/closed differently than a drawer opened and closed dozens or hundreds of times daily.
Heavy industrial drawers, equipment storage systems, and often-used cabinets may need slides engineered for high loads and repeated use.
Check installation requirementsÂ
High-capacity slides are only as effective as their installation. Test to ensure the cabinet or frame is stiff enough, the slides fit, and the mounting hardware is suitable. An uneven installation can cause extra friction and tension on the slides.
ConclusionÂ
When selecting drawer slides by load capacity, first determine the maximum expected load, then check whether it exceeds the drawer slide’s verified load rating. Finally, you should contact a manufacturer of industrial telescopic slides and linear guide rails for customized products.
