With miniaturized and competent industrial IoT devices, the sensor housing support more than just electronics. They are required to keep out heat, vibration, and corrosion, all while upholding tight size tolerances. Sensors becoming a bigger part of real-time monitoring and control contributes to both the accurate and dependable design of homes.
CNC turning plays a key role in achieving this balance, delivering parts with precise geometries, smooth surfaces, and the strength required in miniature formats. CNC turning solutions support rapid prototyping, iterative design, and low-volume production while delivering parts with tight tolerances, fine threads, and robust geometries. This flexibility allows manufacturers to speed up testing and validation without significant tooling investments or delays.
To meet more effectively, manufacturers turn to similar companies like WayKen rapid manufacturing. Fast and accurate production of housings with grooves and slots for PCBs is possible with the advanced CNC turning that they employ.
Design Challenges of Compact Sensor Housings
Designing compact enclosures for industrial IoT applications presents several challenges. Despite the limited internal space, the housing must accommodate sensitive electronic components such as PCBs, connectors, and gaskets. This spatial constraint leaves little room for internal structural features like mounting points or gear mechanisms. Moreover, In multi-component assemblies, critical interfaces such as sealing surfaces and connector ports must be flawlessly aligned to maintain environmental protection and signal integrity. This is where precision machining becomes essential. By enabling tight dimensional control and high repeatability, precision machining ensures that each component fits together with minimal tolerance stack-up, reducing the risk of misalignment or mechanical failure.
Maintaining flatness, right angles, and circularity is easier wielpm high-precision CNC machinery in stacks where the tolerance of all parts added together is crucial. Micrometer precision is required to make both the internal bosses and slots to prevent distressing the machine when it is mounted. To avoid damaging the threads or misaligning sealed connectors, these components must be controlled well in both the axial and radial directions during installation.

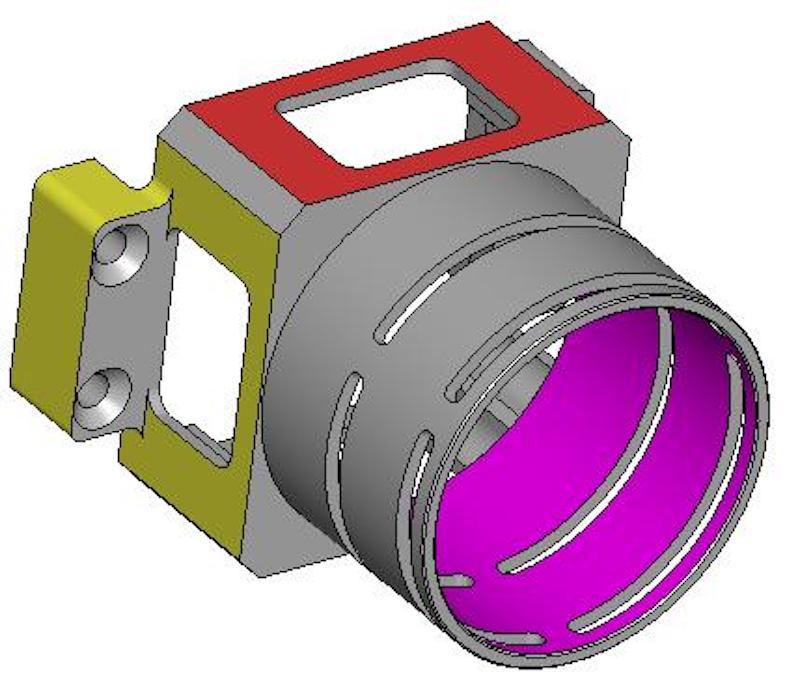

Cylindrical sensor housings usually use CNC turned parts to build the necessary geometry, such as sealing grooves, alignment bores, and ports for sensors. Rigorous coaxiality needs to be preserved in these elements to avert leaks of O-rings and secure the complete alignment between the sensor and the interface of the data line.s possible to produce compound parts with CNC turning, avoiding added tolerance errors that mightn during secondary operations.
Choosing machine tools depends heavily on the material of the part. For example, aluminum is suitable for its heat transfer and low weight, but extra thought must go into making the toolpaths so there is no burring, as it needs a flat surface for sealing. However, thermoplastic materials such as PEEK work best whene slower speeds and sharp. Stainless steel is excellent for “no rust,” yet it might harden and become brittle if machined improperly.
By using CNC turned parts in these compact housings, designers can provide precise measurements and clean surfaces that make the units both durable and eco-friendly in the long run.
Why CNC Turning Is Ideal for Sensor Housing Production
CNC turning offers exceptional dimensional accuracy and repeatability, making it the preferred choice for manufacturing sensor housings that demand tight tolerances. A stationary tool removes material from a rotating workpiece, so you can precisely manage the external and internal diameters. This matter is especially significant in sensor housings because concentricity, wall thickness, and a proper surfare essential for fitting and sealing parts.
CNC turning is particularlyt making round or cylindrical features, many of which are used in sensor enclosures with threaded parts, grooves, or places for O-rings. With CNC turned parts, each unit has the same basic design, which avoids problems with sensor integration or consistency.
Since the tool paths in CNC turning are located with micrometer precision, the tolerance on miniature parts is resistant to failure, as is often the case in small sensors.
CNC turning is accurate and works with many materials such as aluminum, stainless steel, and engineering plastics. Material flexibilitys because sensor housings can be needed to deal with specific aspects of an application, such as blocking electromagnetic signals, resistance to chemicals, or strength.
Quick setup of CNC turning helps engineers to easily and quickly create new prototypes of sensor housings. The process is also economical for lower volumes and fits most industrial IoT or specialist sensing systems. CNC machining of parts is made quicker by improved tools and fast spinning, all while maintaining high surface quality. Manufacturers can produce goods at the same high level throughout, so CNC turning is the best technical choice for sensor housing fabrication.
Key CNC Turning Features for Sensor Applications
Often, the micro turned components need to fit inside compact sensor housings with tight tolerances as small as 0.01 mm. The latter are essential for achieving mechanical fit and signal integrity in embedded sensor systems. Consequently, Swiss-type and other high-precision CNC lathes ared to this task due to the repeatability and fine control of narrow bores, sealing grooves, and concentric internal features. However, the precise and surface quality required for these delicate features that CNC turned parts provide.
Furthermore, surface finishes achieved by CNC turning are consistent and are of utmost importance, for instance, in conical seats and gland interfaces. Elastomeric gaskets and welded joints are effective on these surfaces. The surface roughness values (Ra) can be as low as 0.8 µm without secondary finishing by controlling feed rates and insert geometries.
Housings also have to be threaded, particularly when connectors, caps, or pipe fittings need to be integrated. NPT and BSPT standard threads and custom threads can be made with consistent diameter and profile due to CNC turning. Live tooling for these CNC machines also allows further operations such as cross drilling for cable channels, slotting for PCB mounting, and engraving for product identification, all in a single setup.
All these help to minimize part handling and maintain very precise positional accuracy of all features to the datum of the housing. It is almost impossible to manufacture high-performance, compact sensor housings for industrial IoT environments without this CNC turning for this reason.
Conclusion
CNC turned parts are vital for producing compact, high-performance sensor housings with tight tolerances and reliable surface finishes. Their precision and adaptability across materials make them ideal for industrial IoT applications. Trusted partners like WayKen rapid manufacturing offer the technical expertise and speed needed to support complex geometries and fast development cycles.
